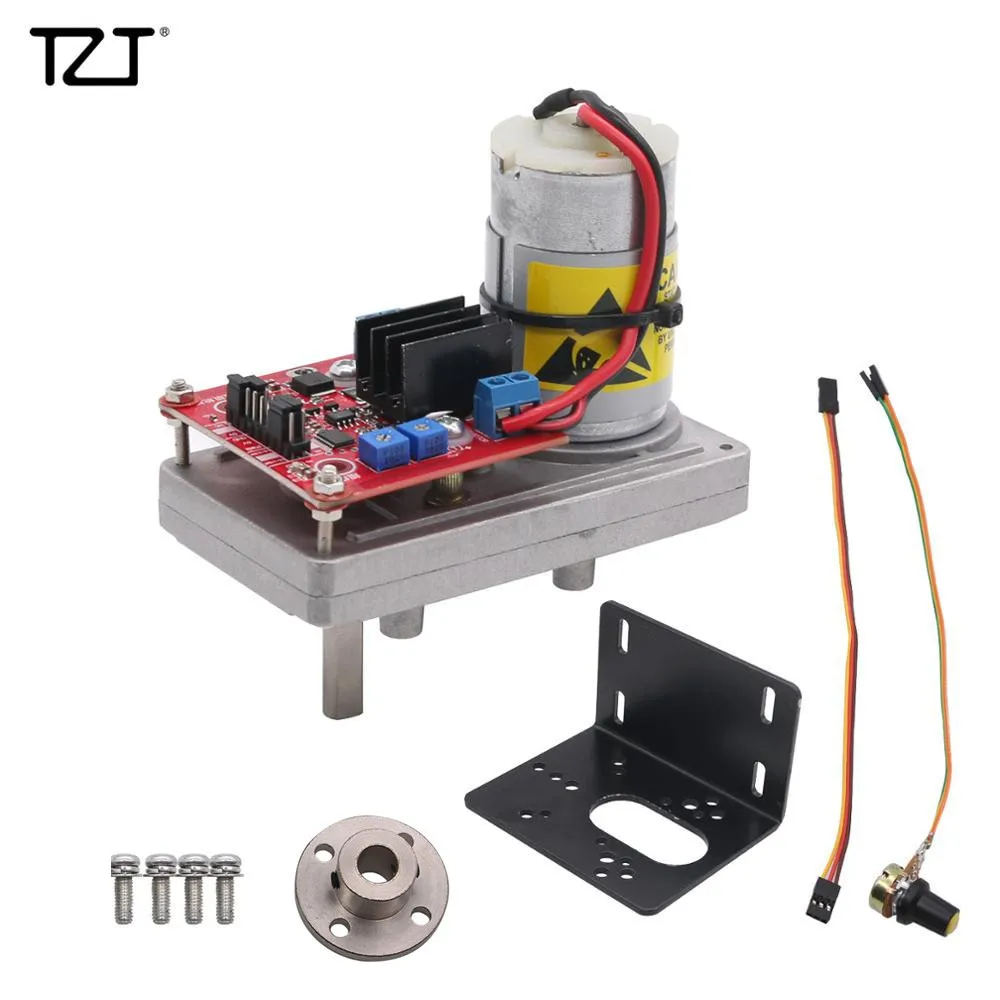

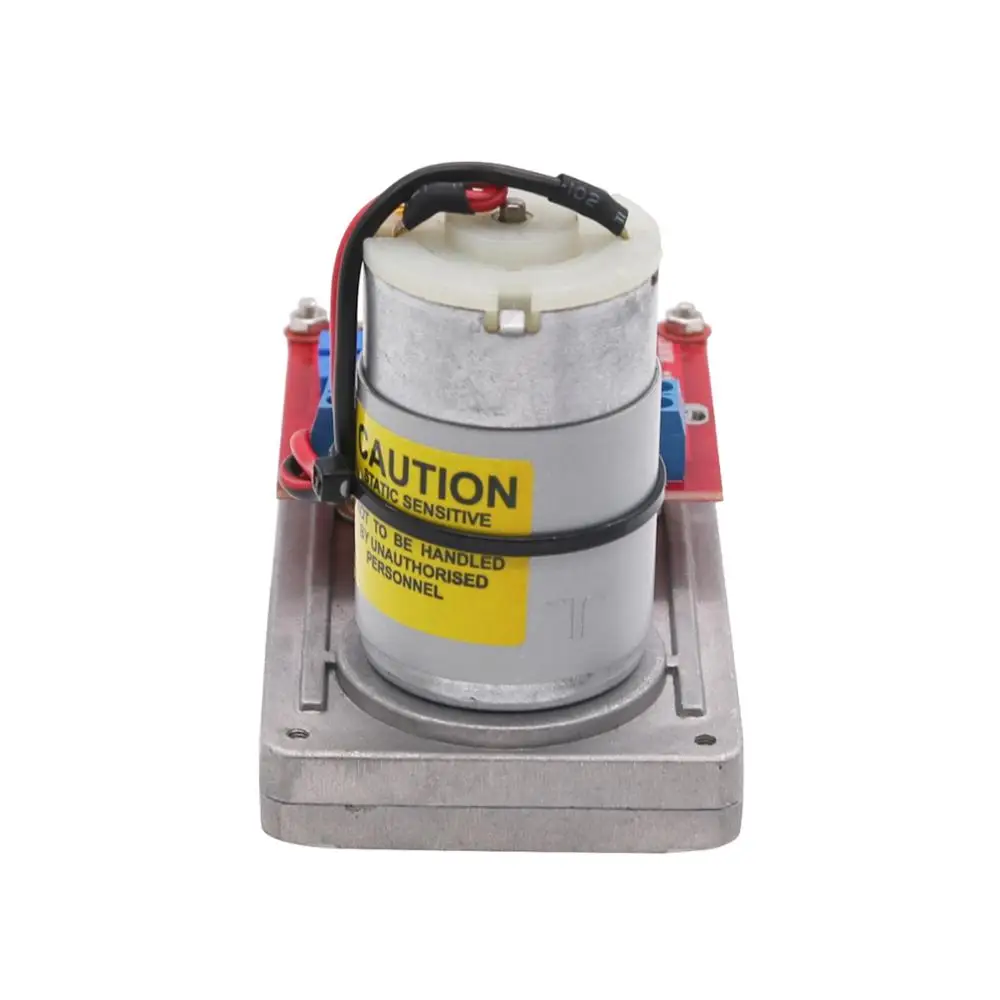

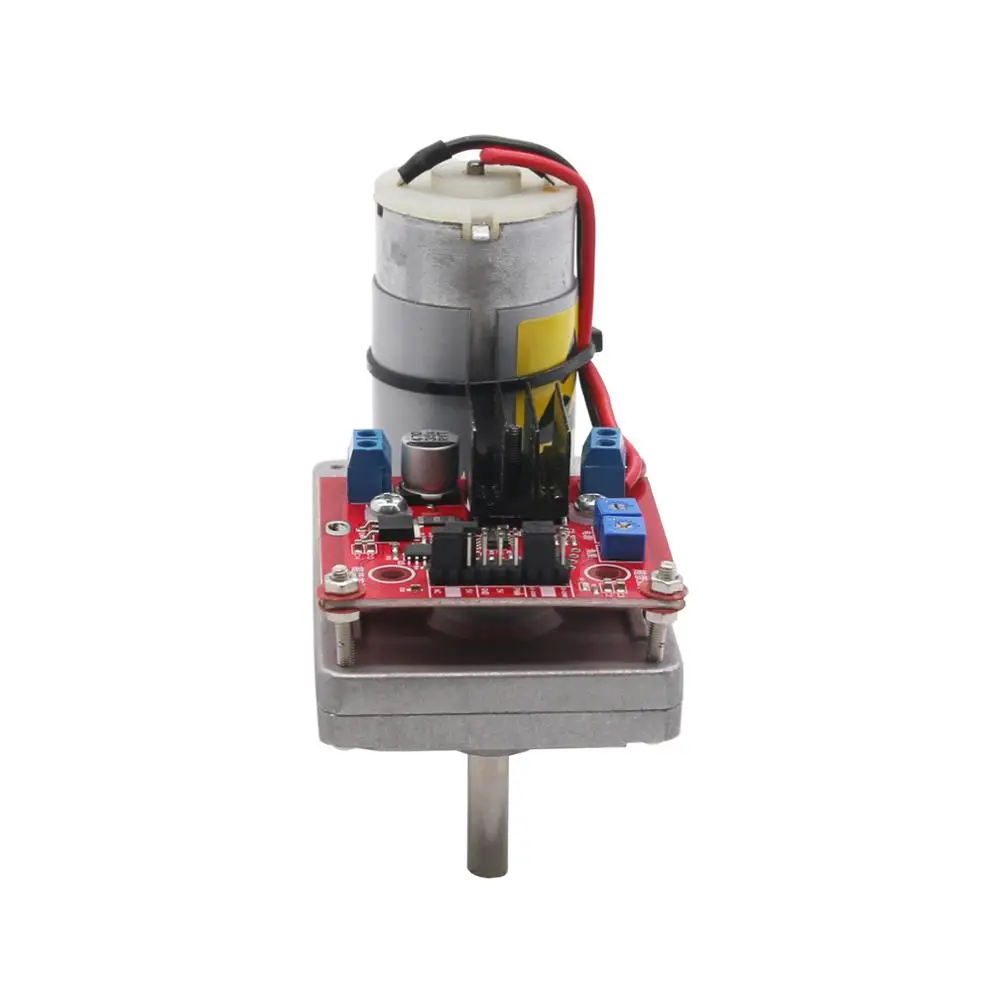

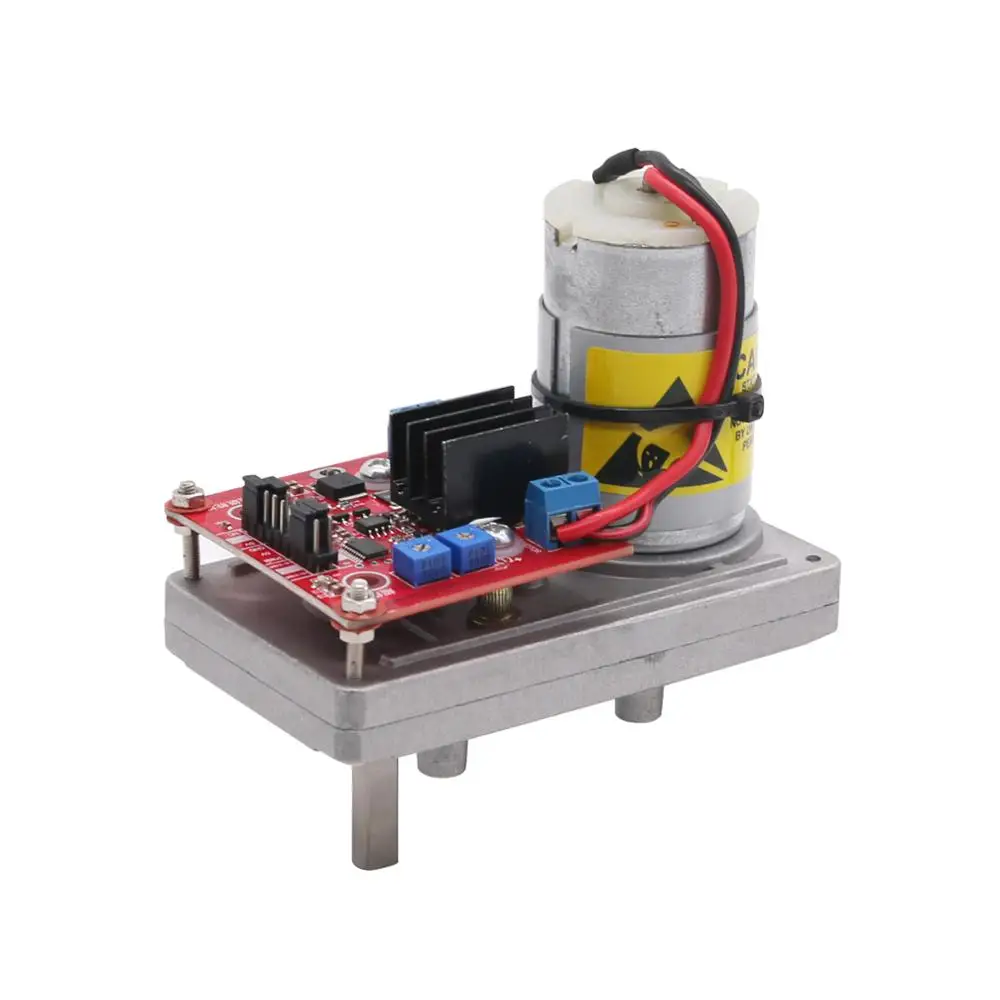

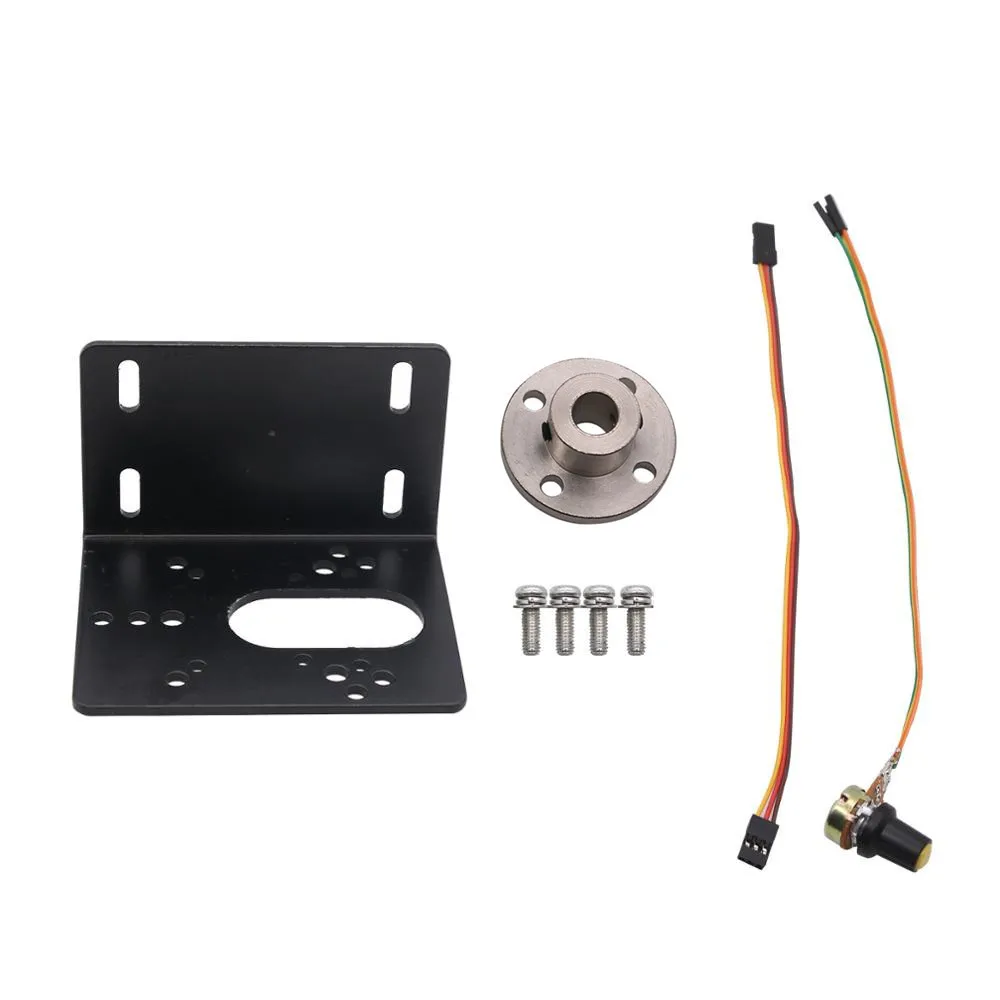

Bonus TZT 100 kg/380 kg/cm Hohe Drehmoment Servo Kit Stahl Getriebe DC12V-24V mit Potentiometer Für Mechanische Arm Roboter


TZT 100 kg/380 kg/cm Hohe Drehmoment Servo Kit Stahl Getriebe DC12V-24V mit Potentiometer Für Mechanische Arm Roboter.
Markenname: TZT
Bescheinigung: NONE
Ursprung: CN (Herkunft)
keywords: High Torque Servo Kit
keywords 1: Steel Gear
keywords 2: Arm Robot
keywords 3: robot
Working Voltage: DC12-24V
No-Load Current: <500mA
Maximum Torque 1: 380kg.cm(24V)
Maximum Torque 2: 1764N.cm(24V)
Maximum Torque 3: 90kg.cm(12V)
Maximum Torque 4: 882N.cm(12V)
Angular Speed 1: 0.12s/60° @24V
Angular Speed 2: 0.24s/60° @12V
Rotation Angle: 300° MAX. (Adjustable)
Input Modes: PWMIN is PWM pulse signal
Pulse Signal Input Range: 0.5ms-2.5ms for multi-channel controller
Voltage Signal Input Range: 0 to +5V
Control Accuracy: 0.5°
Weight: 530g
Gear Material: Steel
Size: 95.5 x 60.5 x 102.6mm
Power Supply Input: DC12-24V
Max. Torque 1: 110kg/cm (24V)
Max. Torque 2: 1078N/cm
Max. Torque 3: 55kg/cm (12V)
Max. Torque 4: 539N/cm
